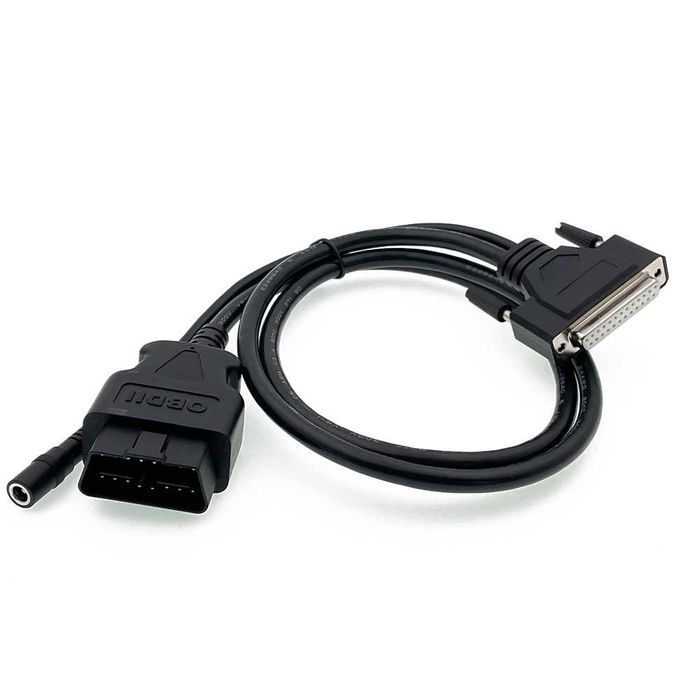

Scanmatik 2 PRO J2534

SM2-PRO Adapter Specifications

Interfaces for communication with PC (Tablet, Smartphone) - USB ;
Power supply voltage: 5... 36V from the vehicle network or USB (galvanic isolation with power supply);
Current consumption, not more than 350mA;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Load-Dump power surge protection (when the generator is switched off on a running engine).
Supported data buses:
13 x ISO-9141/ISO-14230 (K-LINE);
1 x J1850VPW;
1 x J1850PWM;
4 x CAN;
1 x Single Wire CAN.
Built-in multiplexer for switching diagnostic lines;
The widest support of J2534-1/2 standards;
Programming voltage supply (5-24V) to the OBD2 connector pins: 6, 8, 11, 12, 13, 14;
AUX programming voltage output (via an additional cable);
Bluetooth range, not less than: 10m (Class 2);
Adapter dimensions (L x W x H), not more than: 970×750×220mm;
Weight of the device in the basic configuration, not more than: 1 kg.

Scanmatik 2 PRO J2534 1200ron

1. Opel GM GDS2 200ron
2. Toyota Lexus Techstream 100ron
3. Volvo Vida 2015 200ron
4. Mercedes Benz Xentry / Das 300ron
5. Renault CAN Clip 150ron
6. Nissan Consult 3+ 150ron
7. ODIS Service "VW Audi Skoda Seat" 250ron
8. Land Rover Jaguar SDD 300ron
9. Honda HDS 150ron
