Frame
Spark 3 Carbon / IMP technology / HMF Mainframe BB92 / Alloy SL 6011 swingarm SW DM dropouts for Boost 148x12mm TBC Trunnion box construction
BB Standard: BB86/BB92, Press Fit
Fork

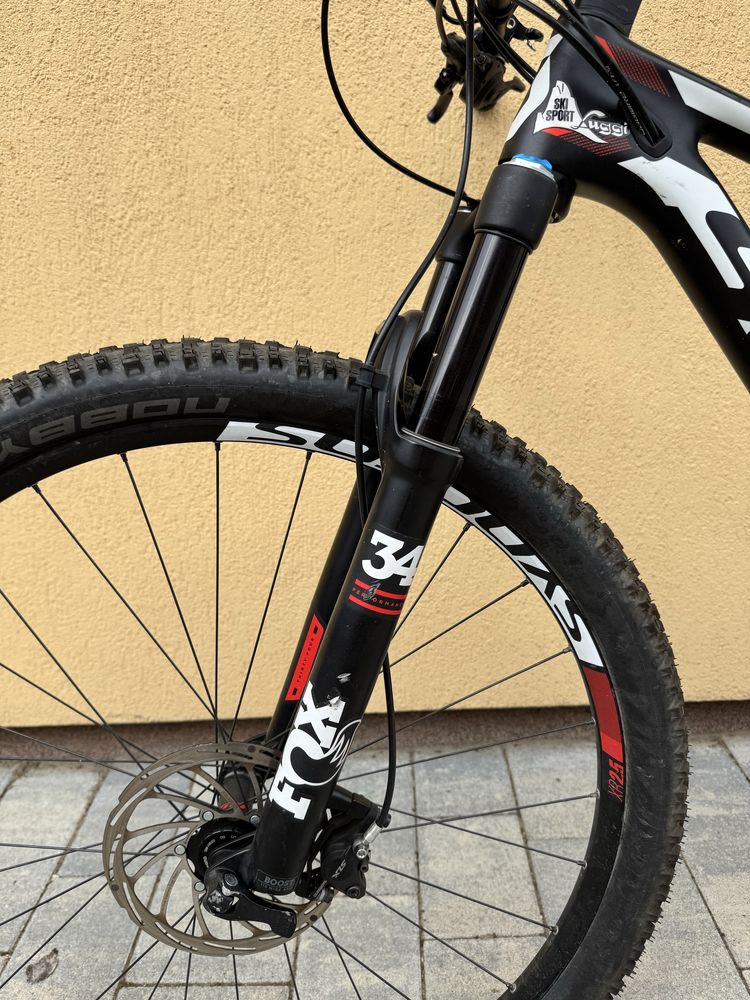

FOX 34 Float Performance Air Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer Reb. Adj. / Lockout / 120mm travel
Travel: 120mm
Spring Type: Air
Shock

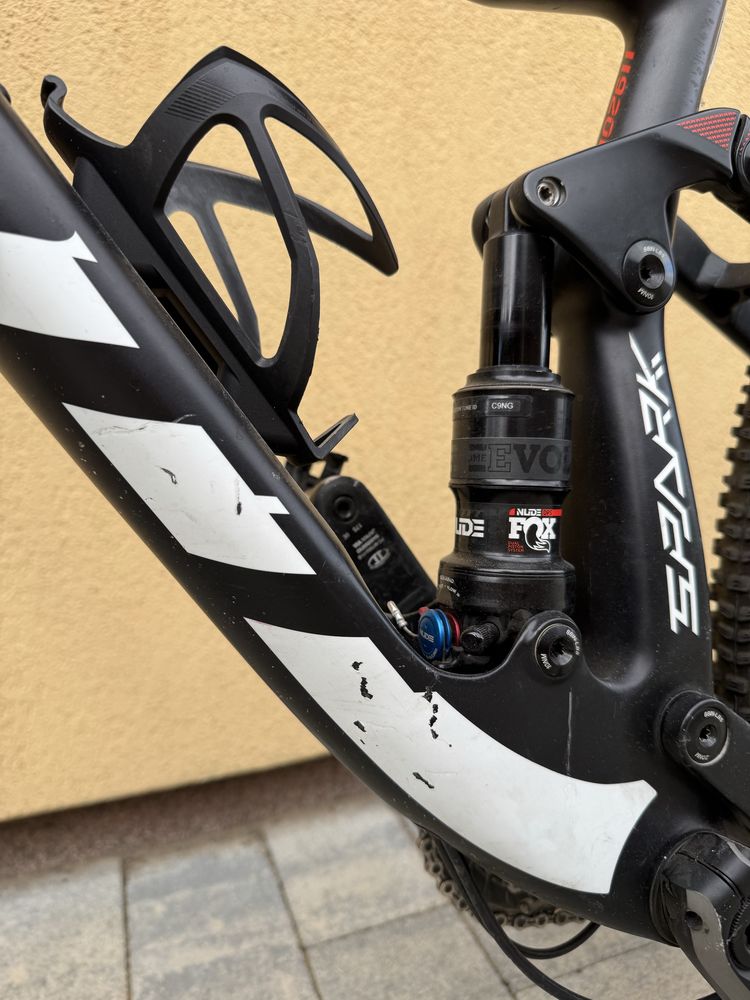

FOX NUDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout - Traction Control -Descend DPS / EVOL / Reb. Adj. Travel 120 - 85 - Lockout / 165X45mm
Travel: 120mm
Bottom Bracket
Shimano BB-MT500-PA / shell 41x92mm
Headset
Syncros Pro Drop in / Tapered 1.5" - 1 1/8" bearing diameter size 42mm and 52mm
Stem
Syncros FL1.5 / Alloy 2014 integrated Spacer & Top Cup / 31.8mm / 6° / 1 1/8"
Handlebar
Syncros FL1.5 T-Bar / Alloy 7050 D.B. T shape Flat / 9° / 740mm Syncros Pro lock-on grips
Saddle
Syncros XR2.0 / CROM rails
Seatpost
FOX Transfer Dropper Remote 31.6mm / S size 100mm / M, L & XL 125mm
Type: Dropper
Groupset
Rear Derailleur

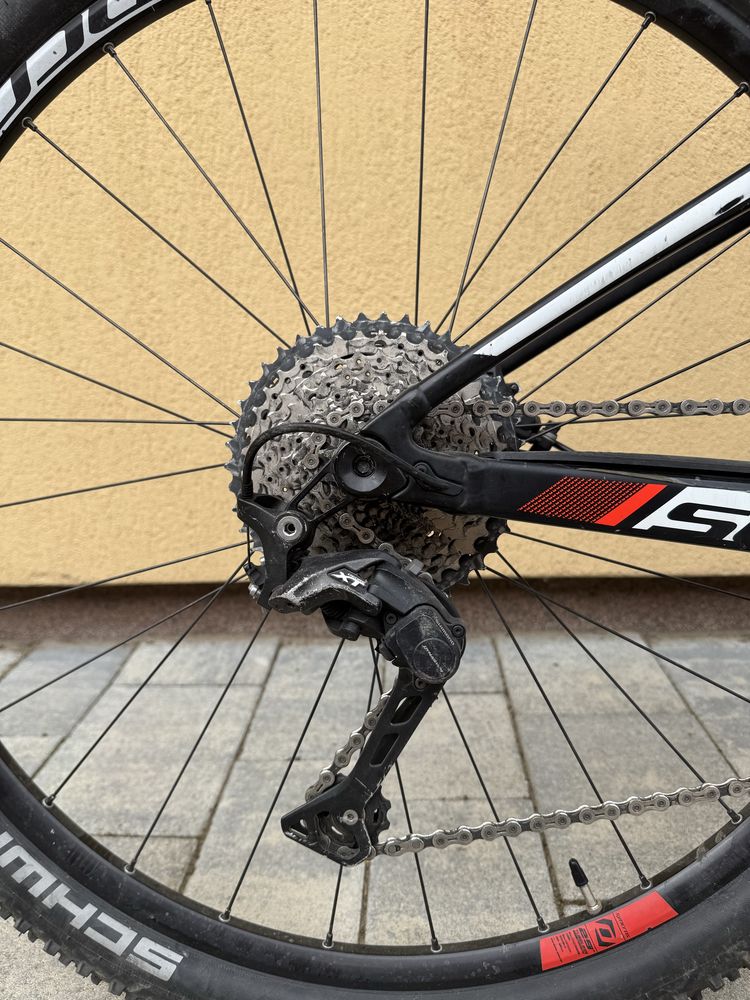

Shimano XT RD-M8000 SGS DM / Shadow Plus / 22 Speed
Front Derailleur
Shimano SLX FD-M7020-11D / side swing
Crank
Shimano SLX FC-M7000-11-B2 / Hollowtech 2 700 Series: 36x26 T / 900 Series: 34x24 T
Shifters
Shimano SLX SL-M7000-11-I / Rapidfire Plus 2 way release / Ispec 2 clamp
Cassette
Shimano SLX CS-M7000 / 11-42 T
Chain
KMC X11L
Brakes
Shimano SLX M7000 Disc 180mm F & R / SM-RT64 CL Rotor
Type: Hydraulic Disc
Wheels
Rims
Syncros XR2.5 / 28H / Tubeless ready
Spokes
DT Swiss Competition 2.0-1.8-2.0 Black
Front Hub
Syncros XR2.5 CL / 15x110mm made by DT Swiss
Rear Hub
Syncros XR2.5 CL / Boost 148x12mm RWS axle / made by DT Swiss
Tires
Maxxis Forekaster / 2.35 / 120TPI Kevlar Bead TR Tubeless Ready / EXO / 3C maxx speed
