Comenzile de minim 200 lei beneficiaza de transport gratuit prin curier sau posta (max. 1 kg valabil doar pt persoane fizice).
Produs nou, pret fara transport se poate expedia prin curier, sau posta.
Bateriile pentru telecomanda sunt incluse.
Optional se mai pot adauga una sau mai multe telecomenzi.

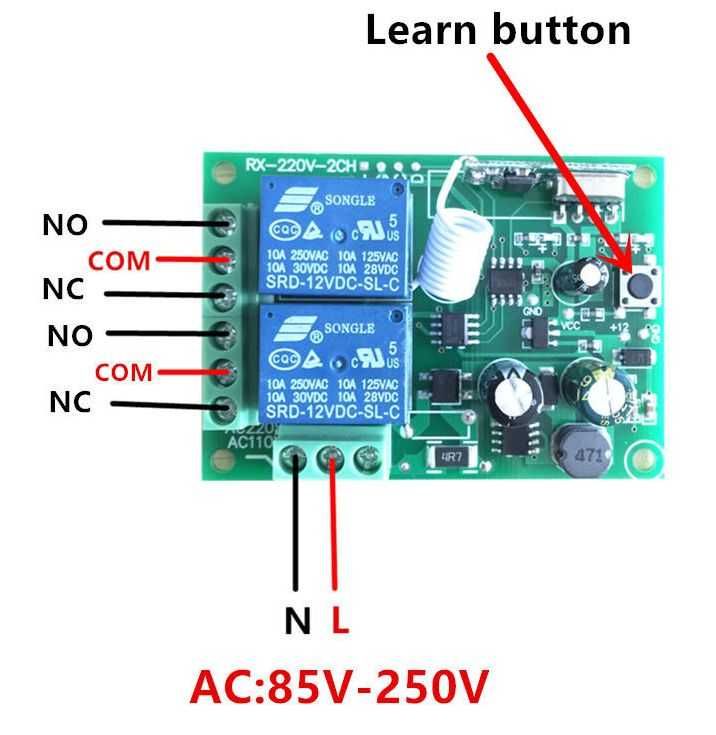

Produsul realizeaza doua contacte prin intermediul a doua relee, este destinat realizarii a diverse automatizari inclusiv actionare porti, caz in care pot fi necesare si alte componente.
Produsul nu este un dispozitiv gata de lucru ci un component si necesita dupa caz asamblare, reglare, instalare de catre o persoana specializata.
Utilizarea incorecta poate duce la distrugerea iremediabila!

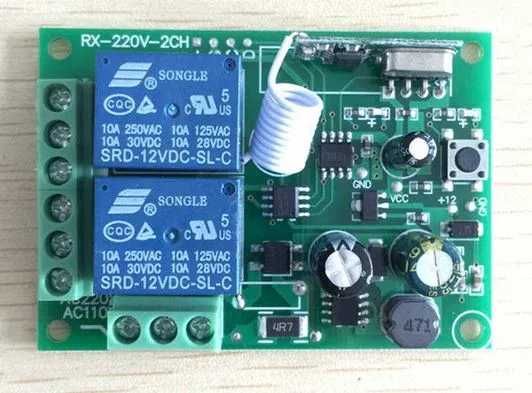

Kit compus din receptor cu doua canale si una telecomanda 433 Mhz, utila pentru diverse comenzi la distanta / automatizari porti.

Telecomanda are baterie inclusa. Receptorul se alimenteaza la 220 V curent de mers in gol 6mA si poate comanda max 10 A prin releele incorporata. Temperatura functionare -40 / + 80 gr C.
Pot fi setate mai multe moduri de lucru pentru telecomanda contact permanent sau intermitent.

Working Modes explanation:

Momentary Mode:

Push the remote button , the relay activates, release the remote button the relay deactivates.

Toggle Mode:

Push and release the remote button , the relay activates.
Push and release the remote button again and the relay deactivates.

Clearing All Stored Transmitters:

**Note**

After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.

Push the learning button on the receiver 8 times , and the codes will be cleared .

Learning the transmitter :(momentary Mode)

Programing a 2 button transmitter as momentary mode transmitter.

STEP 1

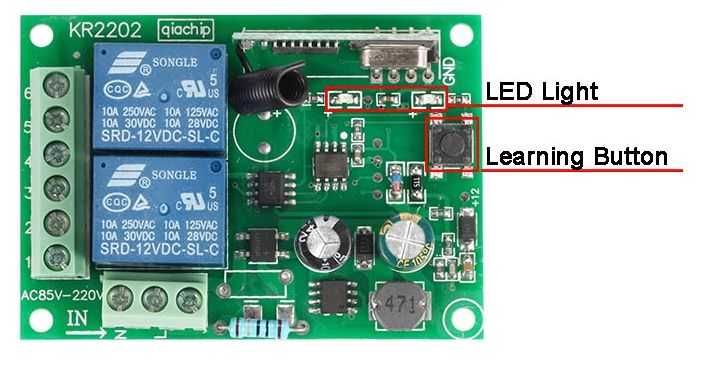

Push and release the learning key on the receiver ONCE.

Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2

Push and release the first button on your transmitter, the LED on the receiver board will flash on then off indicating the button was learned.

STEP 3

Press and release the second button, watching the LED go on and off again.

Wait 3 seconds, the LED will turn on again , indicating system is ready for use.

Learning the transmitter : ( Toggle Mode )

Programing a 2 button transmitter as toggle.

STEP 1

Press and release the learning key on the receiver TWICE.

Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2

Press and release the first button on your transmitter, the LED on the receiver board will flash on then turn off.
Indicating the button was learned.

STEP 3

Next press and release the second button, watching the LED go on and off again.

Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

**Notice**
two button transmitters can only be used as toggle or momentary.
One mode per 2 button transmitter.

(Please note: You let the control panel to learn the remote control, you must press the "A" and "B" button;
Rather than just pressing one of them )

However you can program another transmitter in the other mode.
